Catalog - RE-AL - Precision Solid Reamers

SPEED for more number of reaming holes - with at least double tool life to TiN capacity

We serve normally HSS-E materials for Reamers, and because of the New Surface Hard Coating called SPEED Reamer (TiAlN coated) which giving us the tool life improvement, the reaming fine quality and productivity, so we focus on the SPEED Reamers. Please, check it on comparison test. To reach the very precise tolerance and superior surface finish holes, we recommend to use the patented Floating holder.

The most important SPEED characteristics
Surface hardness	3000HV
Resistance to oxidation	850 celcius
Friction coefficient	0.4
Coating thickness max	1.5 micron

This new SPEED presents high resistance and thermic stability, and subsequently the SPEED reamers are offering an efficient protection against thermal overcharge and wear.
SPEED, the new reaming technology as an alternative to carbide reamers.

The advantages for the users

Improved cutting speeds: SPEED average 30 - 40 m/min (compared to approximately 20 m/min for TiN reamers)
Increased tool life: SPEED at least twice the TiN capacity
Efficient application for wet and low rate lubrication
Reaming of a wide range materials (steel alloies, treated steels, cast-iron etc)

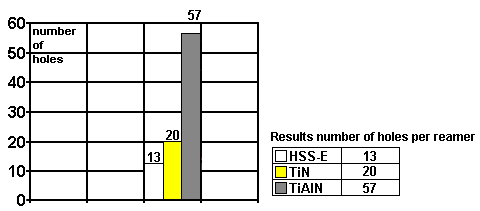

Comparison of Reaming results between HSS-E, TiN and the SPEED-TiAlN

Material	1.2379 (820-850 N/mm²)
Machine	Blösch Mori Seiki Junior
Lubricant	5%
Speed	70 m/min
Feed	0.35 mm/r
Rotation	3595 rpm
Tools	RE-AL HSS-E reamer Diameter 6.20 uncoated
	RE-AL HSS-E reamer Diameter 6.20 TiN coated
	RE-AL HSS-E reamer Diameter 6.20 TiAlN-SPEED coated

STANDARD SOLID REAMER

Straight Shank Machine Reamers DIN 212 HSS-E Tolerance H7 (see below)
Taper Shank Machine Reamers DIN 208 HSS-E Tolerance H7 (see below)
Straight Shank Hand Reamers DIN 206 HSS-E Tolerance H7 (see below)
High Helix Machine Reamers DIN 212 HSS-E Tolerance H7
High Helix Machine Reamers DIN 208 HSS-E Tolerance H7
Taper Bridge Reamers DIN 311 HSS-E Tolerance k11
High Helix Taper Pin Reamers DIN 2179 and DIN 2180 HSS-E (1 : 50)
Reamers for automatic lathe DIN 8089 HSS-E
Carbide machine reamers straight shank DIN 8093
Taper shank machine reamers with brazed carbide DIN 8094
Bottoming machine reamers straight shank and taper shank
Special Reamers (we serve with 0.001 mm increment)

FLOATING HOLDER (patented)

The goal of this floating holder is to achieve precise alignment of the reamer to the prebored hole in vertical and horizontal working conditions by means keep the oscillation 0.2 - 0.5 mm for horizontal use and 3 mm for vertical use by turn the adjusting nuts preserved with 2 screws adjustment.
The reamer clamped by collets ESX 12 - 20 - 25 -32, holder designed without or with through coolant supply.

Construction advantages

Needle-bearings working on precision ground surface to guarantee a smooth floating movement parallel to the axis. This offers perfect working conditions for the floating holder in vertical and horizontal applications.
All its parts are hardened and ground to tolerances of +/- 0.0025 mm. Subsequently, the floating holder absorbs all forces resulting from torsion and pressure.
The floating holder can be applied on all types of machines (conventional and CNC) due to the availability of cylindrical, taper, ISO, VDI or Weldon shank.

The Advantages of floating holder

Precise movement parallel to the axis
No centre adjustment - the reamer centres itself
Very precise tolerances and superior surface finish
Increased tolerance conformity and greater tool life due to the regular distribution of cutting forces on all cutting edges
Greater economy due to lower downtime and higher production rates

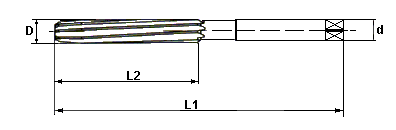

Machine Reamers Straight Shank DIN 212 HSS-E Tolerance H7

DIN 212 machine reamer with left hand spiral flutes 7-8 degree

D	L2	L1	L3	Flutes	d
1	12	38	-	4	1.1
1.5	16	40	-	4	1.4
2	18	49	-	4	1.8
2.5	19	57	-	4	2.3
3	19	61	-	6	2.8
3.5	25	70	-	6	3
4	25	75	32	6	4
4.5	28	80	32	6	4.5
5	28	86	34	6	5
5.5	32	93	36	6	5.5
6	32	93	36	6	5.5
6.5	32	101	38	6	6
7	32	109	40	6	7
7.5	32	109	40	6	7
8	33	117	42	6	8
D	L2	L1	L3	Flutes	d
8.5	33	117	42	6	8
9	36	125	42	6	9
9.5	36	125	42	6	9
10	38	133	44	6	10
10.5	38	133	44	6	10
11	41	142	44	6	10
11.5	41	142	44	6	10
12	44	151	44	6	10
12.5	44	151	44	6	10
13	44	151	44	6	10
14	47	160	50	8	12.5
14.5	50	162	50	8	12.5
15	50	162	50	8	12.5
15.5	52	170	50	8	12.5
16	52	170	50	8	12.5
D	L2	L1	L3	Flutes	d
17	54	175	52	8	14
18	56	182	52	8	14
19	58	189	58	8	16
20	60	195	58	8	16

Machine Reamers Taper Shank DIN 208 HSS-E
DIN 208 machine reamer with left hand spiral flutes 7-8 degree

D mm Tol. -0/+0.004 mm						D mm	Tol	L1	L2	MT	FL
						3	H7	113	15	1	6
						4	H7	124	19	1	6
						5	H7	133	23	1	6
						6	H7	138	26	1	6
						7	H7	150	31	1	6
						8	H7	156	33	1	6
						9	H7	162	36	1	6
D mm Tol. -0/+0.004 mm						D mm	Tol	L1	L2	MT	FL
9.97	9.98	9.99	10.00	10.01	10.02	10	H7	168	38	1	6
10.97	10.98	10.99	11.00	11.01	11.02	11	H7	175	41	1	6
11.97	11.98	11.99	12.00	12.01	12.02	12	H7	182	44	1	6
12.97	12.98	12.99	13.00	13.01	13.02	13	H7	182	44	1	6
13.97	13.98	13.99	14.00	14.01	14.02	14	H7	189	47	1	8
14.97	14.98	14.99	15.00	15.01	15.02	15	H7	204	50	2	8
15.97	15.98	15.99	16.00	16.01	16.02	16	H7	214	52	2	8
16.97	16.98	16.99	17.00	17.01	17.02	17	H7	214	54	2	8
17.97	17.98	17.99	18.00	18.01	18.02	18	H7	219	56	2	8
18.97	18.98	18.99	19.00	19.01	19.02	19	H7	223	58	2	8
19.97	19.98	19.99	20.00	20.01	20.02	20	H7	228	60	2	8
20.97	20.98	20.99	21.00	21.01	21.02	21	H7	232	62	2	8
21.97	21.98	21.99	22.00	22.01	22.02	22	H7	237	64	2	8
22.97	22.98	22.99	23.00	23.01	23.02	23	H7	241	66	2	8
23.97	23.98	23.99	24.00	24.01	24.02	24	H7	268	68	3	8
24.97	24.98	24.99	25.00	25.01	25.02	25	H7	268	68	3	8
25.97	25.98	25.99	26.00	26.01	26.02	26	H7	273	70	3	8
26.97	26.98	26.99	27.00	27.01	27.02	27	H7	277	71	3	10
27.97	27.98	27.99	28.00	28.01	28.02	28	H7	277	71	3	10
28.97	28.98	28.99	29.00	29.01	29.02	29	H7	281	73	3	10
29.97	29.98	29.99	30.00	30.01	30.02	30	H7	281	73	3	10
D mm Tol. -0/+0.004 mm						D mm	Tol	L1	L2	MT	FL
						31	H7	285	75	3	10
						32/33	H7	317	77	4	10
						34/35	H7	321	78	4	10
						36	H7	325	79	4	10
						38/40	H7	329	81	4	10

Hand Reamers Straight Shank DIN 206 HSS-E Tolerance H7

DIN 206 hand reamer with left hand spiral flutes 7-8 degree

D	L2	L1	Flutes	Square End
2	25	50	4	1.60
2.5	29	58	4	2.00
3	31	62	6	2.24
3.5	35	71	6	2.80
4	38	76	6	3.15
4.5	41	81	6	3.55
5	44	87	6	4.00
5.5	47	93	6	4.50
6	47	93	6	4.50
6.5	50	100	6	5.00
7	54	107	6	5.60
7.5	54	107	6	5.60
8	58	115	6	6.30
8.5	58	115	6	6.30
9	62	124	6	7.10
D	L2	L1	Flutes	Square End
9.5	62	124	6	7.10
10	66	133	6	8.00
10.5	66	133	6	8.00
11	71	142	6	9.00
11.5	71	142	6	9.00
12	76	152	6	10.00
12.5	76	152	6	10.00
13	76	152	6	10.00
13.5	81	163	6	11.20
14	81	163	8	11.20
14.5	81	163	8	11.20
15	81	163	8	11.20
15.5	87	175	8	12.50
16	87	175	8	12.50
16.5	87	175	8	12.50
D	L2	L1	Flutes	Square End
17	93	188	8	14.00
17.5	93	188	8	14.00
18	93	188	8	14.00
18.5	93	188	8	14.00
19	93	188	8	14.00
19.5	100	201	8	16.00
20	100	201	8	16.00
22	107	215	8	18.00
24	115	231	8	20.00
25	115	231	8	20.00
26	115	231	8	20.00
28	124	247	10	22.40
30	124	247	10	22.40
32	133	265	10	25.00
34	142	284	10	28.00
D	L2	L1	Flutes	Square End
35	142	284	10	28.00
36	142	284	10	28.00
38	152	305	10	31.50
40	152	305	10	31.50

In order having any difficulties and reaming failure on reamer application, it should be checked on Reaming Trouble Shooting.

All the dimensions can be changed without prior notice.
Other specification and dimension, on request.
