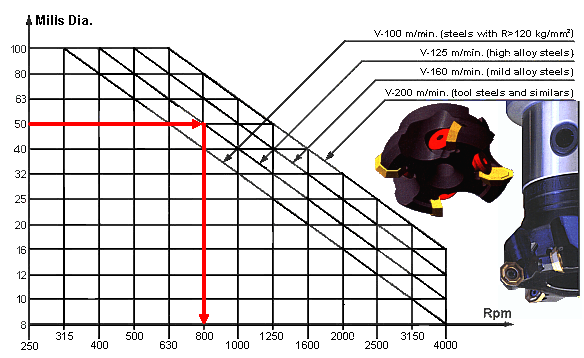

Diagram Guidelines for Selecting Cutting Speed and Feed on Conventional Milling with Indexable Carbide Insert
The red line shows rpm = 800, for a 50 mm Mill Dia. working at 125 m/min.
- To be considered the empirical rule which connects the cutting
speed and the cutting edge life.
- To double the cutting edge life
is sufficient to reduce the cutting speed by 20%.
